  • Solar Energy Solenoid Valve FCD.3-448BF

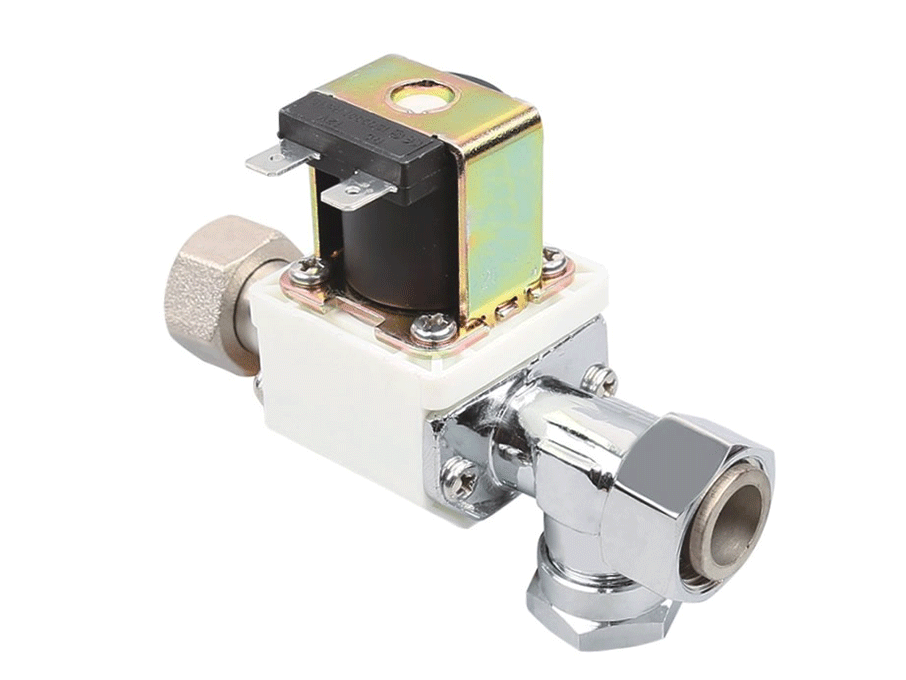

Solar Energy Solenoid Valve FCD.3-448BF

Spec.: FCD.3-448BF

Type: Straight Solenoid Valve Series


PRODUCT DESCRIPTION

Spec.: FCD.3-448BF

Type: Straight Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.

2. If the user has special needs, please specify when ordering.


Application:

Straight solenoid valves are mainly used in solar energy, water dispenser, instrument etc.

At present, we usually supply these straight solenoid valves to the solar energy and water dispenser manufacturers from home and abroad.


Advantage:

Having rich experience in this type straight solenoid valves manufacturing.

The installation and maintenance of the straight solenoid valves are more convenient.

Having diversity of the straight solenoid valves, so we can provide this type solenoid valves with different connector size to our customer.


Specification:

Model

FCD.3-448BF

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure

0.020.8Mpawith pressure

00.05Mpawithout pressure

Inlet

G1/2”female thread

Medium temperature:

050℃

Outlet

G1/2”female thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
