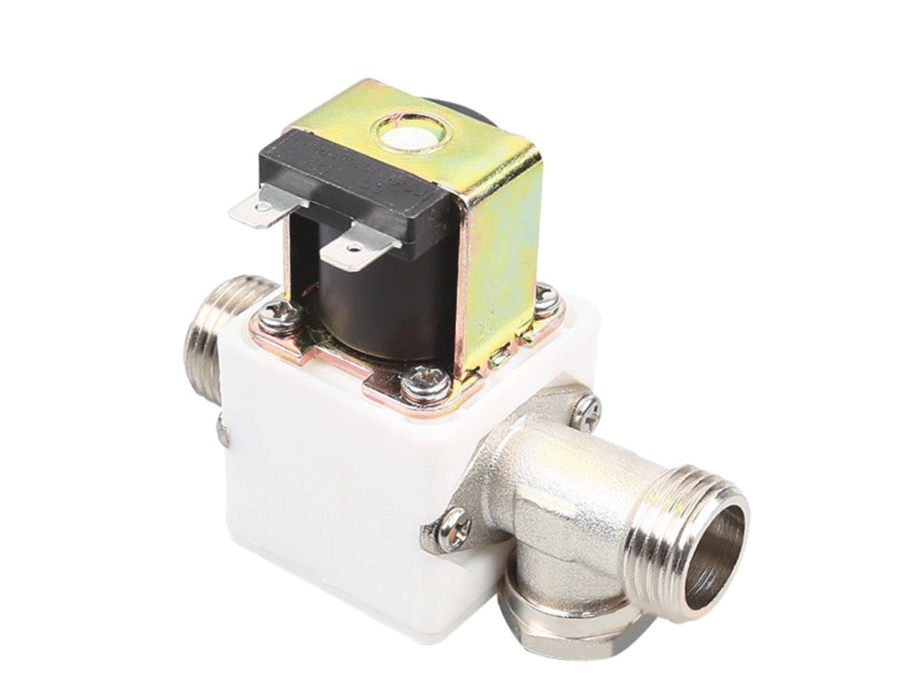

G1/2 Solenoid Valve FCD.3-148F
Spec.: FCD.3-148F
Type: Straight Solenoid Valve Series
PRODUCT DESCRIPTION
Spec.: FCD.3-148F
Type: Straight Solenoid Valve Series
Ordering Information:
1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.
2. If the user has special needs, please specify when ordering.
Application:
Straight solenoid valves are mainly used in solar energy, water dispenser, instrument etc.
At present, we usually supply these straight solenoid valves to the solar energy and water dispenser manufacturers from home and abroad.
Advantage:
Having rich experience in this type straight solenoid valves manufacturing.
The installation and maintenance of the straight solenoid valves are more convenient.
Having diversity of the straight solenoid valves, so we can provide this type solenoid valves with different connector size to our customer.
Specification:
Model: | FCD.3-148F | |||
Rated voltage: | Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/ AC12V/AC24V/AC36V/AC48V/AC110V/AC220V | |||
Working pressure: | 0.02~0.8Mpa(with pressure) 0~0.05Mpa(without pressure) | Inlet: | G1/2”male thread | |
Medium temperature: | 0~50℃ | Outlet: | G1/2”male thread | |
Water pressure: | 0.02Mpa | 0.1Mpa | 0.3Mpa | 0.8Mpa |
Flow: | ≥3L/min | ≥8L/min | ≥13L/min | ≥25L/min |
