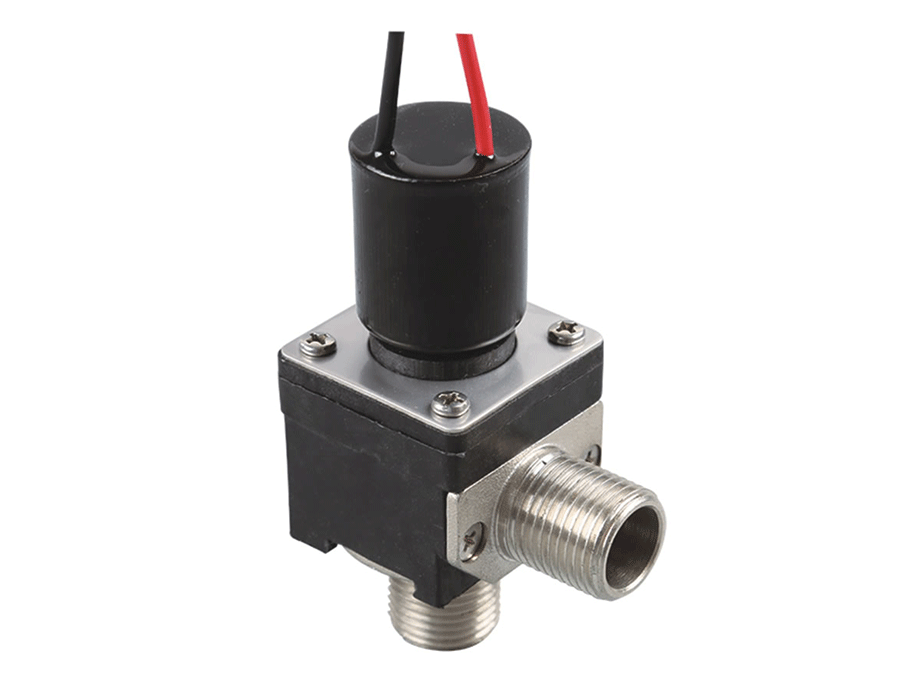

Toilet Solenoid Valve FCD.3-138B

Spec.: FCD.3-138B

Type: Smart Sanitary Solenoid Valve Series


PRODUCT DESCRIPTION

Spec.: FCD.3-138B

Type: Smart Sanitary Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the "model meaning".

2. If the user has special needs, please specify when ordering.


Application:

Smart Sanitary Solenoid Valve is mainly used in intelligent bathroom, intelligent toilet,smart bidet,intelligent urinal and so on. At present, we usually supply these solenoid valves to intelligent toilet manufacturers from home and abroad.


Advantage:

The starting performance of the solenoid valve is very good

It is not easy to age of the solenoid valve

It is with simple structure design,so the disassembly and repair of the solenoid valve is convenient


Specification:

Model

FCD.3-138B

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure

0.020.8Mpa

Inlet

G1/2”male thread

Medium temperature:

050℃

Outlet

G1/2”male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
