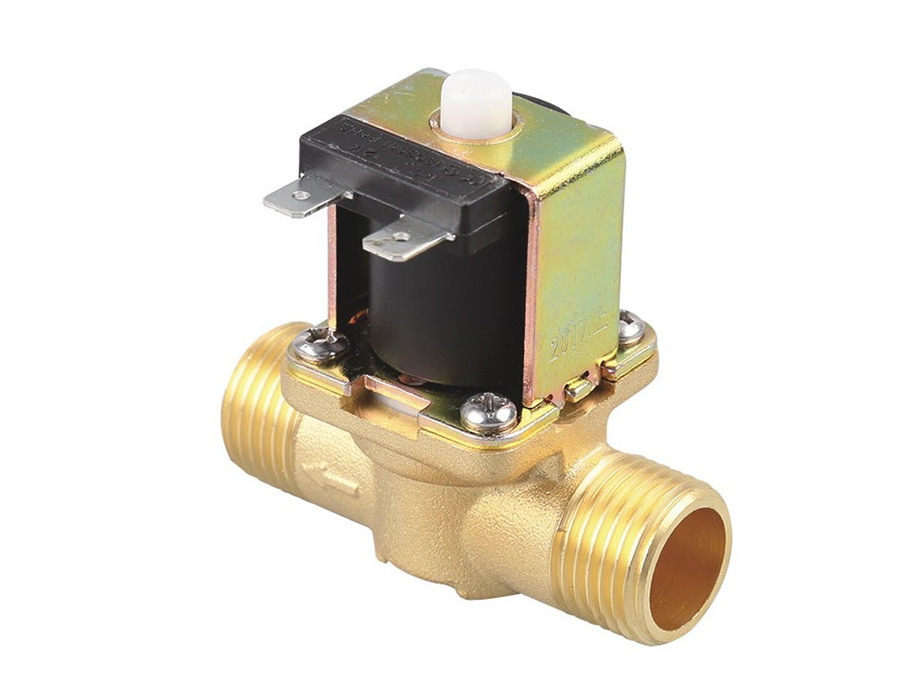

Water Dispenser Solenoid Valve FCD.3-178TK

Spec.: FCD.3-178TK

Type: Normal Open Solenoid Valve Series

PRODUCT DESCRIPTION

Spec.: FCD.3-178TK

Type: Normal Open Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.

2. If the user has special needs, please specify when ordering.


Application:

Normal open solenoid valve are widely used in textile, printing and dyeing, food, medicine, cigarettes, cement products, petrochemical, metallurgy and other automatic control systems.


Advantage:

Having rich experience in this type normal open solenoid valves manufacturing.

The installation and maintenance of the normal open solenoid valves are more convenient.

Having diversity of the normal open solenoid valves, so we can provide this type solenoid valves with different connector size to our customer.


Specification:

Model

FCD.3-178TK

Rated voltage:

DC9V/DC12V/DC24V/DC36V/DC48V/DC110V

Working pressure

0.020.8Mpawith pressure

00.05Mpawithout pressure

Inlet

G1/2”male thread

Medium temperature:

0130℃

Outlet

G1/2”male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
