  • Brass Solenoid Valve FCD.3-T17

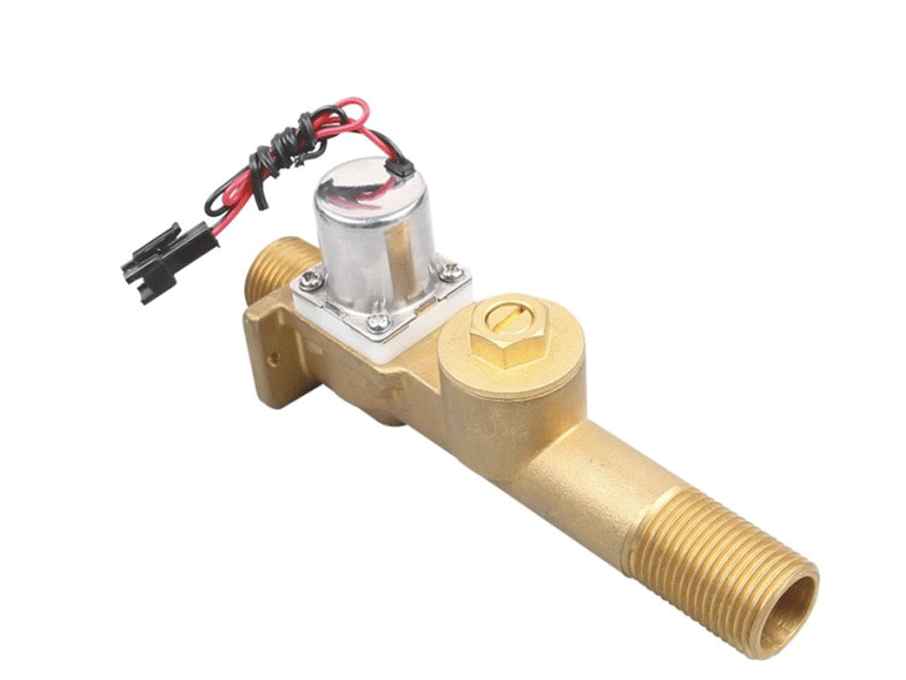

Brass Solenoid Valve FCD.3-T17

Spec.: FCD.3-T17

Type: Copper Solenoid Valve Series


PRODUCT DESCRIPTION

Spec.: FCD.3-T17

Type: Copper Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.

2. If the user has special needs, please specify when ordering.


Application:

Copper solenoid valves are mainly used in water heater, water drinker, water purifier, smart sanitary ware and other high-temperature water equipment. We usually supply these copper solenoid valves to the water heater and water drinker,  water purifier and smart sanitary ware manufacturers from home and abroad.


Advantage:

The copper solenoid valves can withstand high temperature water.

The copper solenoid valves are with good starting performance.

The copper solenoid valves are with long service life.

The installation and maintenance of the copper solenoid valves are easy.


Specification:

Model

FCD.3-T17

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure

0.020.8Mpa

Inlet

G1/2”female thread

Medium temperature:

050℃

Outlet

G1/2”male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥12L/min

≥20L/min

≥34L/min
