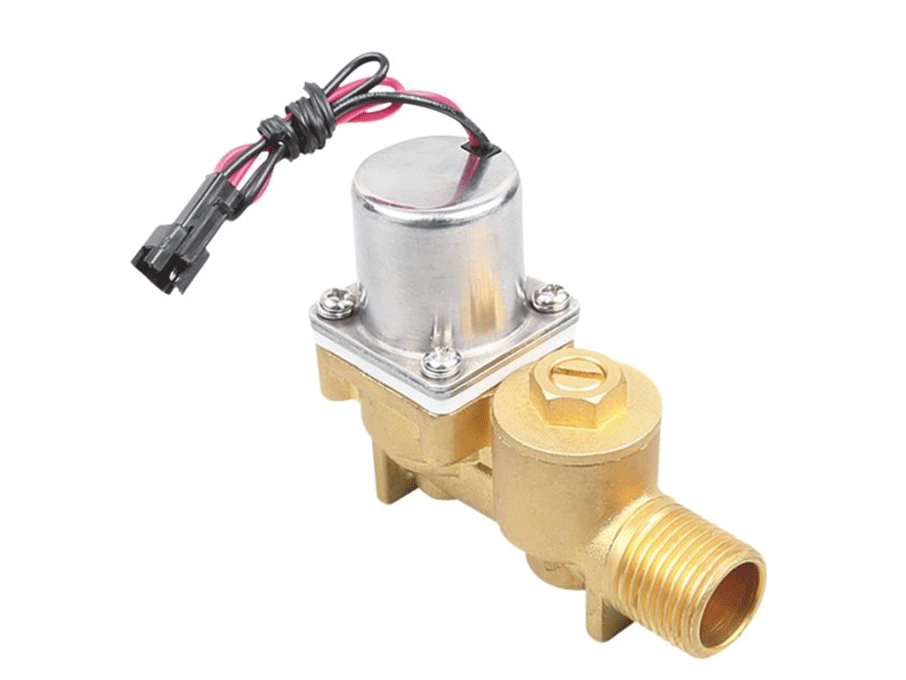

1/2 Inch Brass Valve FCD.3-T30
Spec.: FCD.3-T30
Type: Copper Solenoid Valve Series
PRODUCT DESCRIPTION
Spec.: FCD.3-T30
Type: Copper Solenoid Valve Series
Ordering Information:
1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.
2. If the user has special needs, please specify when ordering.
Application:
Copper solenoid valves are mainly used in water heater, water drinker, water purifier, smart sanitary ware and other high-temperature water equipment. We usually supply these copper solenoid valves to the water heater and water drinker, water purifier and smart sanitary ware manufacturers from home and abroad.
Advantage:
The copper solenoid valves can withstand high temperature water.
The copper solenoid valves are with good starting performance.
The copper solenoid valves are with long service life.
The installation and maintenance of the copper solenoid valves are easy.
Specification:
Model: | FCD.3-T30 | |||||
Rated voltage: | Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/ AC12V/AC24V/AC36V/AC48V/AC110V/AC220V | |||||
Working pressure: | 0.02~0.8Mpa | Inlet: | G1/2”male thread | |||
Medium temperature: | 0~50℃ | Outlet: | G1/2”male thread | |||
Water pressure: | 0.02Mpa | 0.1Mpa | 0.3Mpa | 0.8Mpa | ||
Flow: | ≥2L/min | ≥9L/min | ≥15L/min | ≥26L/min |
